Chapter 7: Supporting Equipment | Router Security Configuration Design Guide

A secure router deployment requires more than just the router itself. The surrounding infrastructure — management switches, terminal servers, AAA servers, NTP servers, monitoring platforms, and physical security hardware — is equally critical to the overall security posture. This chapter defines the complete set of supporting equipment required for a production-grade secure router deployment, organized by functional category and integrated into a single reference diagram.

7.1 Integrated Supporting Equipment Overview

The integrated diagram below shows all supporting equipment categories in a single view, with color-coded connections indicating the type of traffic flowing between each component. This integrated perspective is essential for understanding the dependencies between components and ensuring that no single supporting device becomes a bottleneck or single point of failure for the entire security infrastructure.

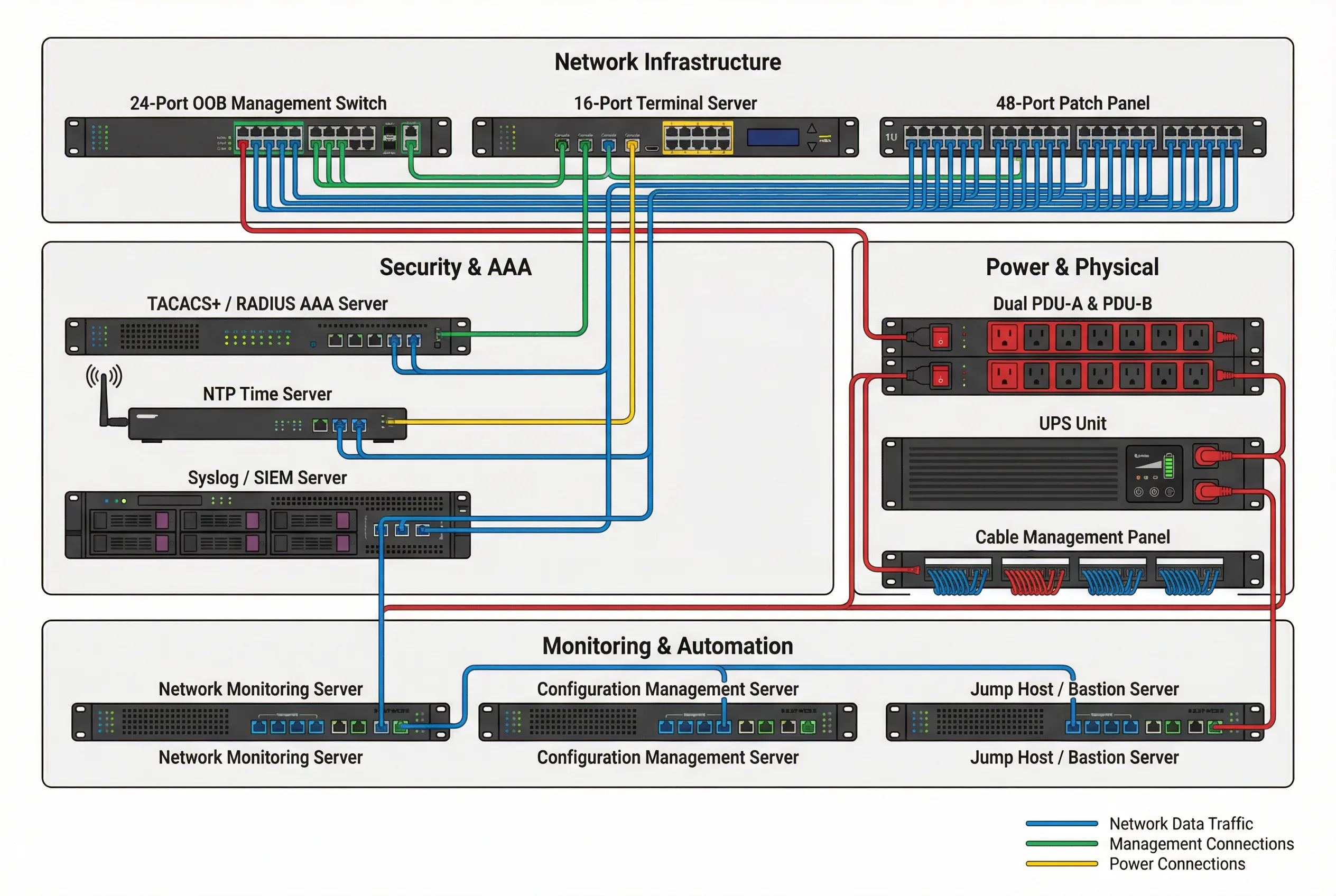

Figure 7.1: Integrated Supporting Equipment — All Supporting Devices in a Single Deployment View

The diagram organizes supporting equipment into four functional zones: Network Infrastructure (OOB switch, terminal server, patch panel), Security & AAA (AAA server, NTP server, SIEM), Power & Physical (PDUs, UPS, cable management), and Monitoring & Automation (monitoring server, config management, jump host). Each zone is interconnected with appropriate color-coded links showing network data, management, and power connections.

7.2 Network Infrastructure Components

Component	Specification	Security Requirement	Redundancy
OOB Management Switch	24-port managed switch; dedicated to management traffic only; VLAN-capable; SNMPv3 monitoring	No production traffic; port security; 802.1X authentication for connected devices; ACL on all ports	Dual-homed to two OOB switches for redundancy
Terminal Server	16-port async console server; SSH access to all console ports; session logging; break-in detection	SSH-only access; AAA authentication; all console sessions logged; idle timeout 5 minutes	Single terminal server acceptable if OOB switch is redundant
Patch Panel	48-port Cat6A patch panel; labeled at both ends; cable management rings; color-coded by function	Physical access control to patch panel; tamper-evident seals on unused ports; documentation required	N/A — passive component

7.3 Security & AAA Infrastructure

Component	Specification	Security Requirement	Redundancy
AAA Server (TACACS+/RADIUS)	Dedicated AAA appliance or VM; TACACS+ and RADIUS support; LDAP/AD integration; MFA support; command authorization	Hardened OS; encrypted storage; audit logging; access restricted to OOB network; regular backup	Primary + secondary AAA server; automatic failover; local fallback on router
NTP Time Server	Stratum-1 or Stratum-2 NTP server; GPS or atomic clock reference preferred; NTP authentication support	NTP authentication (MD5 or SHA-1) required; access restricted to OOB network; no public NTP servers	Primary + secondary NTP server; router falls back to secondary if primary unreachable
Syslog / SIEM Server	Centralized syslog collector; SIEM correlation engine; real-time alerting; 12-month retention; encrypted storage	Immutable log storage; access restricted to security team; TLS-encrypted syslog transport; integrity checking	Clustered SIEM with replication; backup to secondary site

7.4 Power & Physical Infrastructure

Component	Specification	Security Requirement	Redundancy
Dual PDU (PDU-A / PDU-B)	Rack-mount PDU; metered and switched; remote power cycling capability; C13/C19 outlets; 20A/30A circuit	PDU access restricted to authorized personnel; remote power cycling requires MFA; power cycle events logged	PDU-A on Circuit-A; PDU-B on Circuit-B; never share circuits
UPS Unit	2U rack-mount UPS; minimum 10-minute runtime at full load; SNMP monitoring; automatic shutdown capability	UPS management interface on OOB network; SNMPv3 monitoring; battery status alerts	UPS on each PDU circuit; generator backup for extended outages
Cable Management	1U horizontal cable management panels; vertical cable managers; color-coded cables; labeled at both ends	Proper cable management prevents accidental disconnection; enables quick identification during incidents	N/A — passive component

7.5 Monitoring & Automation Infrastructure

Component	Specification	Security Requirement	Redundancy
Network Monitoring Server	SNMPv3 polling; ICMP reachability; interface utilization; BGP session state; CPU/memory trending; alerting	Read-only SNMPv3 credentials; monitoring traffic on OOB network; alert thresholds documented and reviewed quarterly	Primary + secondary monitoring server; alert routing to multiple channels
Configuration Management Server	Automated config backup (every 4 hours); config diff detection; compliance checking; rollback capability; version control	Config backups encrypted at rest; access restricted to automation service account; all changes logged; diff alerts to security team	Config backups replicated to secondary site; version control with full history
Jump Host / Bastion Server	Hardened Linux server; SSH proxy; MFA enforcement; session recording; privileged access management (PAM) integration	No direct SSH to routers from non-OOB networks; all sessions proxied through jump host; session recording mandatory; idle timeout 5 minutes	Primary + secondary jump host; automatic failover

7.6 Supporting Equipment Sizing Guide

The table below provides sizing guidance for supporting equipment based on the number of routers being managed. These are minimum recommendations; actual sizing should account for growth projections and peak load scenarios.
